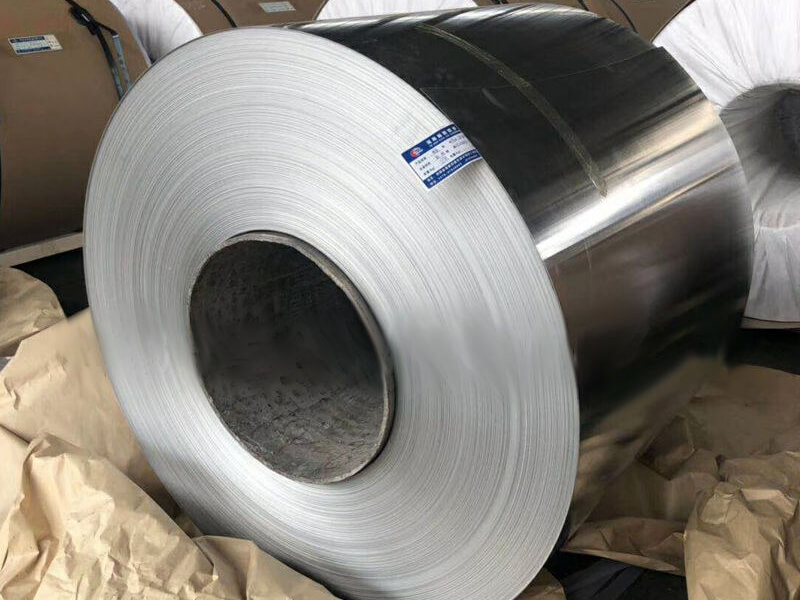

1050 aluminum sheet/coil belongs to commercially pure wrought family with a purity of 99.5% Aluminum. Except Al, 0.4% of Fe is added to 1050 aluminum sheet/coil, thus, it has high electrical conductivity. 1000 series aluminum group offers the best correction resistance compared to any alloy group, so does the 1050 aluminum sheet/coil. Xiongshi Al. can manufacture and supply high quality 1050 aluminum sheet/coil with 18 years experience. Besides, different tempers are available, such as O (annealed), H12, H14, H18, etc.
Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others | Al | ||
Content | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | - | 0.07 | 0.05 | 0.15 | Remain | ||
Alloy Temper | Specified | Tensile strength | Yield< strength | Elongation | ||||||||
Thickness(mm) | (MPa) | (MPa) | (%) | |||||||||
1050-O/1050-H111 | 0.2-0.5 | 65-95 | Min20 | Min20 | ||||||||
0.5-1.5 | Min22 | |||||||||||
1.5-3.0 | Min26 | |||||||||||
3.0-6.0 | Min29 | |||||||||||
6.0-12.5 | Min35 | |||||||||||
12.5-80.0 | ||||||||||||
1050-H112 | 6.0-12.5 | Min75 | Min20 | |||||||||
12.5-80.0 | Min70 | Min25 | ||||||||||
1050-H12 | 0.2-0.5 | 85-125 | Min65 | Min2 | ||||||||
0.5-1.5 | Min4 | |||||||||||
1.5-3.0 | Min5 | |||||||||||
3.0-6.0 | Min7 | |||||||||||
6.0-12.5 | Min9 | |||||||||||
12.5-40.0 | ||||||||||||
1050-H14 | 0.2-1.5 | 105-145 | Min85 | Min2 | ||||||||
1.5-3.0 | Min4 | |||||||||||
3.0-6.0 | Min5 | |||||||||||
6.0-12.5 | Min6 | |||||||||||
12.5-25 | ||||||||||||
1050-H16 | 0.2-0.5 | 120-160 | Min100 | Min1 | ||||||||
0.5-1.5 | Min2 | |||||||||||
1.5-4.0 | Min3 | |||||||||||
1050-H18 | 0.2-0.5 | Min135 | Min120 | Min1 | ||||||||
0.5-1.5 | Min140 | Min2 | ||||||||||
1.5-3.0 | Min2 | |||||||||||
1050-H19 | 0.2-0.5 | Min155 | Min140 | Min1 | ||||||||
0.5-1.5 | Min150 | Min130 | ||||||||||
1.5-3.0 | ||||||||||||
1050-H22 | 0.2-0.5 | 85-125 | Min55 | Min4 | ||||||||
0.5-1.5 | Min5 | |||||||||||
1.5-3.0 | Min6 | |||||||||||
3.0-6.0 | Min11 | |||||||||||
6.0-12.5 | Min12 | |||||||||||
1050-H24 | 0.2-0.5 | 105-145 | Min75 | Min3 | ||||||||
0.5-1.5 | Min4 | |||||||||||
1.5-3.0 | Min5 | |||||||||||
3.0-6.0 | Min8 | |||||||||||
6.0-12.5 | ||||||||||||
1050-H26 | 0.2-0.5 | 120-160 | Min90 | Min2 | ||||||||
0.5-1.5 | Min3 | |||||||||||
1.5-4.0 | Min4 | |||||||||||
1050-H28 | 0.2-0.5 | Min140 | Min110 | Min2 | ||||||||
0.5-1.5 | ||||||||||||
1.5-3.0 | Min3 | |||||||||||
Applications
For its content above in the chart, 1050 aluminum sheet/coil has high ductility and high reflective finish. Besides, 1050 aluminum sheet/coil is non-heat treatment series is produced in extruded sections. It has excellent cold workability, braze-ability and solder-ability, and it is strengthened by cold working. However, 1050 aluminum sheet/coil has low mechanical strength compared to more significantly alloyed metals. All of these characteristics make 1050 aluminum sheet/coil well suited to chemical and electrolytic brightening but not in casting. Last but not least, moderate strength and good anodizing quality enables our products has a vast application.
